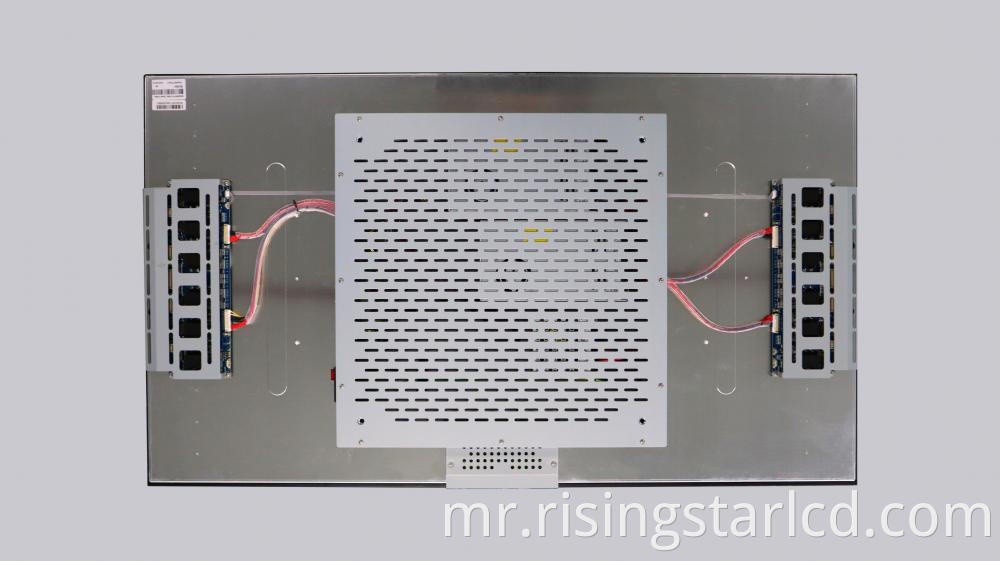

एम्बेड केलेले ओपन फ्रेम एलसीडी प्रदर्शन

LCD panel

Panel size

27"-65"

Resolution

1920*1080 or 3840*2160

Support Color

16.7M colors

Brightness (cd/m²)

1000 nits (can be customized)

Contrast ratio

1300:1

Touch panel

Touchscreen Type

Capacitive Touch (10 points )

Surface Hardness

7H

Luminousness

90%

Touch Interface

USB (RS232 optional)

Touch response time

2ms

Working Life

>50 million times

OSD

OSD control

Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.

Support languages

English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.

Support OS

Windows ,HDMI, Android, ect.

Power Supply

External Power Supply

AC 100 - 240V, 50-60Hz

Working voltage

DC 12-24V

Power consumption

≤35W

Enclosure

Material

Aluminum Alloy

Color

Black, Silver or customized

VESA mounting

75x75mm/100x100mm

IP grade

Front panel IP55 waterproof

Operating Environment

Temperature Range

operating: -10 to 50°C, storage: -20 to 80°C

Relative humidity

operating: -5% to 95%, storage: -5% to 95%

Packing Details

Gross weight

about 4kg

Accessories

Power adapter, VGA cable, USB touch cable, embedded screws

Other

Mounting

embedded mounting screws

Wall mounting brackets (optional)

Desk stand holder (optional)

Warranty

1 year warranty

Certificates

CE, RoHS
